Open Tank Float Switch
Special Order

Open Tank Float Switch

SKU #216840 Model #9036DG2R

UPC #785901576433

Square D


SPECIAL ORDER FROM
415 TRUE VALUE HARDWARE , 3101 MEMORIAL HIGHWAY , DALLAS , PA
Will you be going in-store to purchase this product?
Product can only be purchased in store

Description

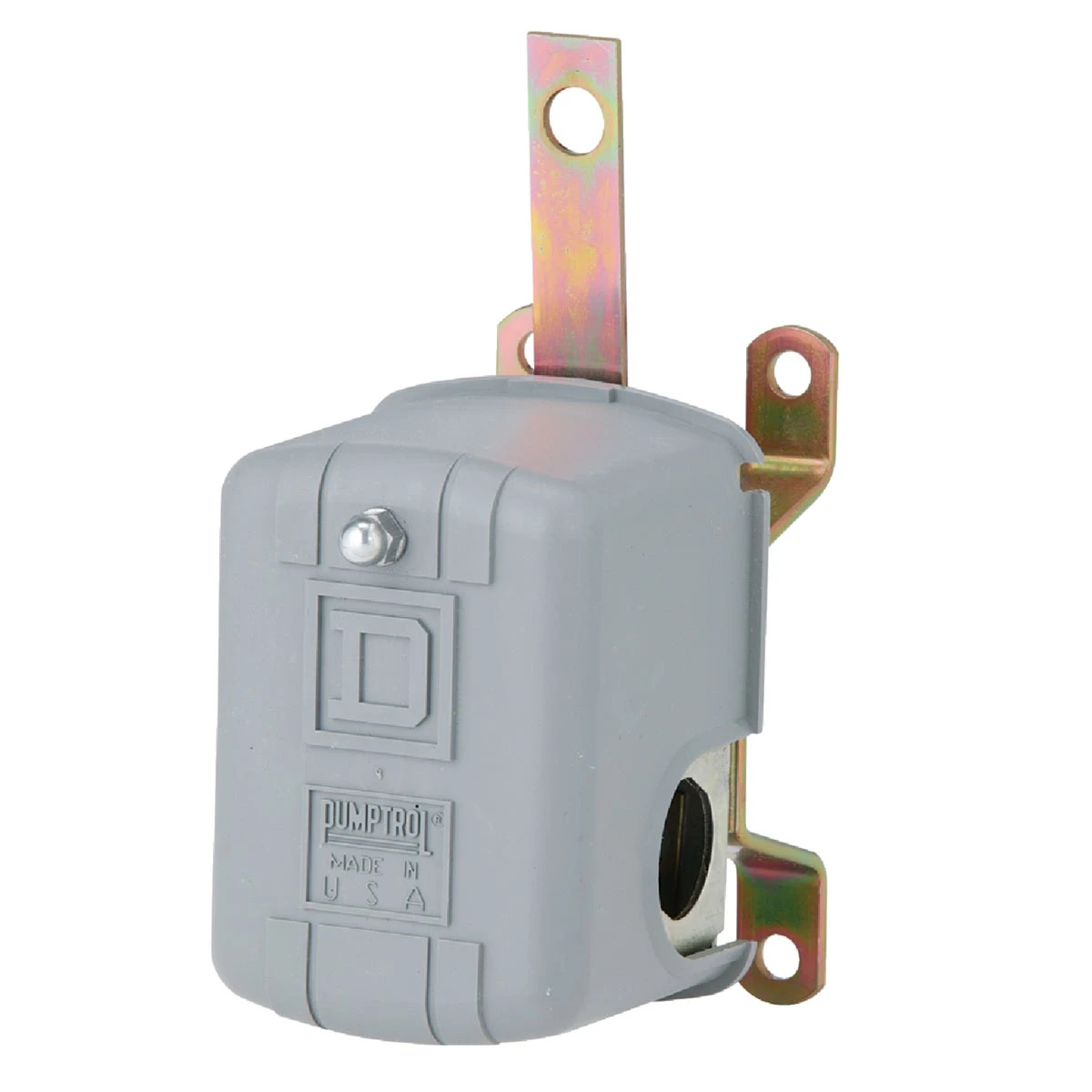

Square D 9036DG2R Open Tank Float Switch is designed for open tank and sump applications. It features a lever operated mechanism and can be floor mounted or pedestal mounted with the 9049UMS1 mounting plate. With a NEMA 1 enclosure and 2 contacts that open when the liquid rises above a designated level, it is ideal for tank filling applications and can serve as a pilot to operate an overload protected starter. It has a voltage rating of 230 V, a wattage rating of 3.7 kW, a contact form of DPST-DB, a screw clamp connection type, a NEMA 1 UL 50 enclosure type, 300 operating cycles, a temperature rating of -22 to 220 degree F, and a pedestal mounting type. It is CSA File LR25490 Certified and UL Listed File E12158. It comes with 18 months warranty.

  • Designed for open tank and sump applications.
  • Lever operated and can be floor mounted or can be pedestal mounted using a mounting plate #9049UMS1.
  • Has a NEMA 1 enclosure and 2 contacts that open when the liquid rises above a designated level.
  • This configuration is used for tank filling applications and does not provide motor protection, but may be used as a pilot to operate an overload protected starter.
  • Voltage rating of 230 V.
  • Wattage rating of 3.7 kW.
  • Contact form of DPST-DB.
  • Connection type of screw clamp.
  • Enclosure type of NEMA 1 UL 50.
  • Operating cycles of 300.
  • Temperature rating of -22 to 220 degree F.
  • Mounting type of pedestal.
  • CSA File LR25490 Certified and UL Listed File E12158.
  • Comes with 18 months warranty.
