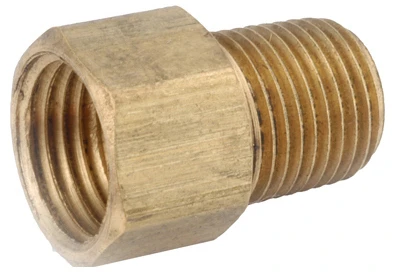

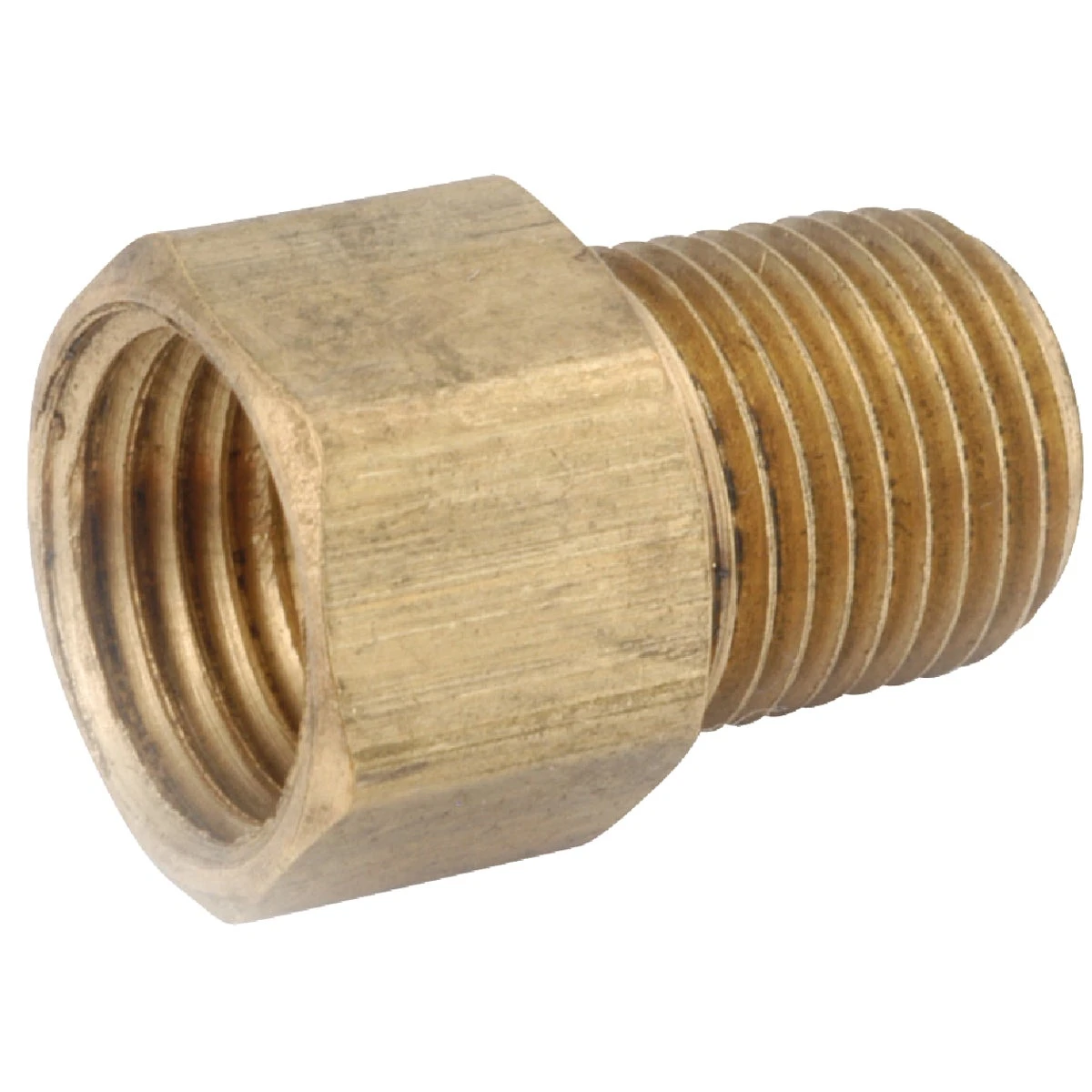

Brass Inverted Flare Connector, 3/8 X 3/8 In.

Overview:
This Anderson Metals Brass Inverted Flare Connector is designed for reliable connections in plumbing applications. With a size of 3/8 inch by 3/8 inch, this connector is perfect for use with various types of tubing including copper, brass, aluminum, and steel. Its durable brass construction ensures longevity and resistance to corrosion, making it an ideal choice for both residential and commercial plumbing projects.

Key Features:
- Fitting Size 1: 3/8 In. O.D.
- Fitting Size 2: 3/8 In.
- Connection Type 1: Female Inverted Flare
- Connection Type 2: Male Iron Pipe (MIP)
- Material: High-quality Brass
- Pressure Rating: Up to 1000 psi
- Maximum Working Temperature: 73°F
- Two-piece construction consisting of a nut and body
- Temperature range: Negative 65°F to Plus 250°F
- Recessed seats and threads for added protection
- Shorter overall length for limited space applications
- Shorter nut allows tubing to be bent closer to the fitting
- Fair vibration resistance and resists mechanical pullout
- Easy to disassemble and reassemble without affecting the seal
- Primary uses include liquids, gases, and hydraulic brake systems

Assembly Instructions:
1. Cut a smooth, square end on the tubing.
2. Slide the nut onto the tube with threads facing the end.
3. Flare the end of the tube.
4. Thread the nut onto the body until snug, then turn an additional 1/6th turn.

This connector is perfect for various plumbing tasks, ensuring a secure and leak-free connection for your piping needs. Whether you are working on a DIY project or a professional installation, the Anderson Metals Brass Inverted Flare Connector is a reliable choice that guarantees performance and durability.
